Home > Products > Plastic Cups > Plastic Cups Screen Printing Machine with Auto sensor

Plastic Cups Screen Printing Machine with Auto sensor

  • Plastic Cups Screen Printing Machine with Auto sensor
  • Plastic Cups Screen Printing Machine with Auto sensor
  • Plastic Cups Screen Printing Machine with Auto sensor
  • Plastic Cups Screen Printing Machine with Auto sensor

Plastic Cups Screen Printing Machine with Auto sensor

    Packaging: plywood case
    Productivity: 20
    Brand: HY
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 20
    Certificate: ce
    Port: SZ

Basic Info

Model No.: 400SA

Product Description

Plastic Cups Screen Printing Machine with Auto sensor

Serco Cylinder Screen Printing Machine 1


Plastic Cups Screen Printing Machine with Auto sensor Characteristic:

1. Touch screen control system; Easy operation;

2. High quality steel structure; Light and Solid;

3. Adjustable Printing route and speed, meet the different requirements of printing;

4. Three models: manual, semiautomatic, automatic;

5. Constant pressure device of the Squeegee blade, made sure the pressure in the printing is steady;

6. Screen frame can be adjusted to front, back, left, right and level;

7. Convenient pedal switch, simplicity of operation, maintenance friendly;

8. Servo motor controlled printing headhigh precision

9. Servo motor controlled Color-matching systemeasy for color-matching.

10. Motor-driven Lifting structurelinear guideway frequency converterreducer


Plastic Cups Screen Printing Machine with Auto sensor Application:

This machine is specially designed to print on the cylindrical objects which need print many colors,but without marking place, such as plastic bottles, glass bottle, cups and etc.

Model:

HY400SA

Max print size:

Ø100MM

Max print length:

330mm

Max print speed:

1000pcs/hr

Voltage:

220V 50Hz

Power:

3KW

Air pressure:

4-6 bar

L×W×H:

1000*1000*1700mm

Net weight:

200kg

Sevro motor for prining
The printing movement of HY400SF servo screen printer is controlled by high precision servo motor, the printing length is set up at the PLC touch screen, easy to use, high quality printing.

Serco Cylinder Screen Printing Machine 7
Serco Cylinder Screen Printing Machine 9

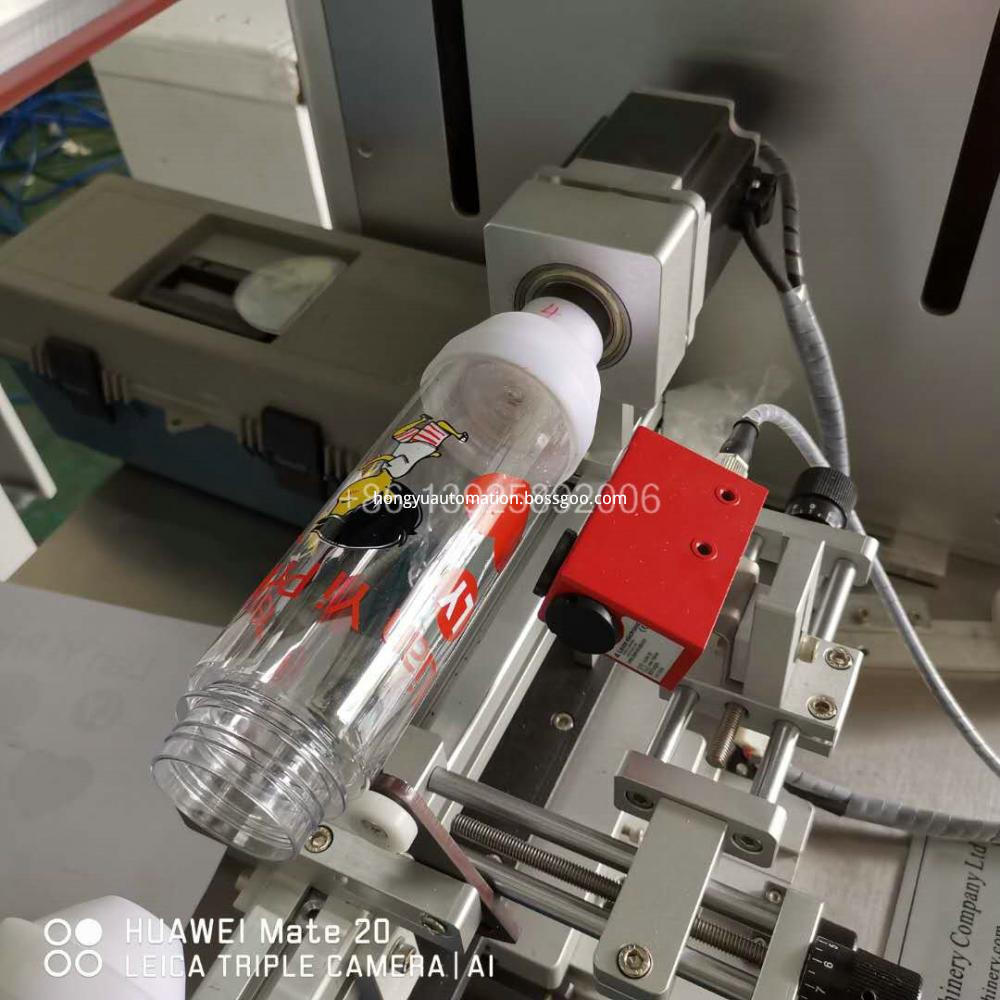

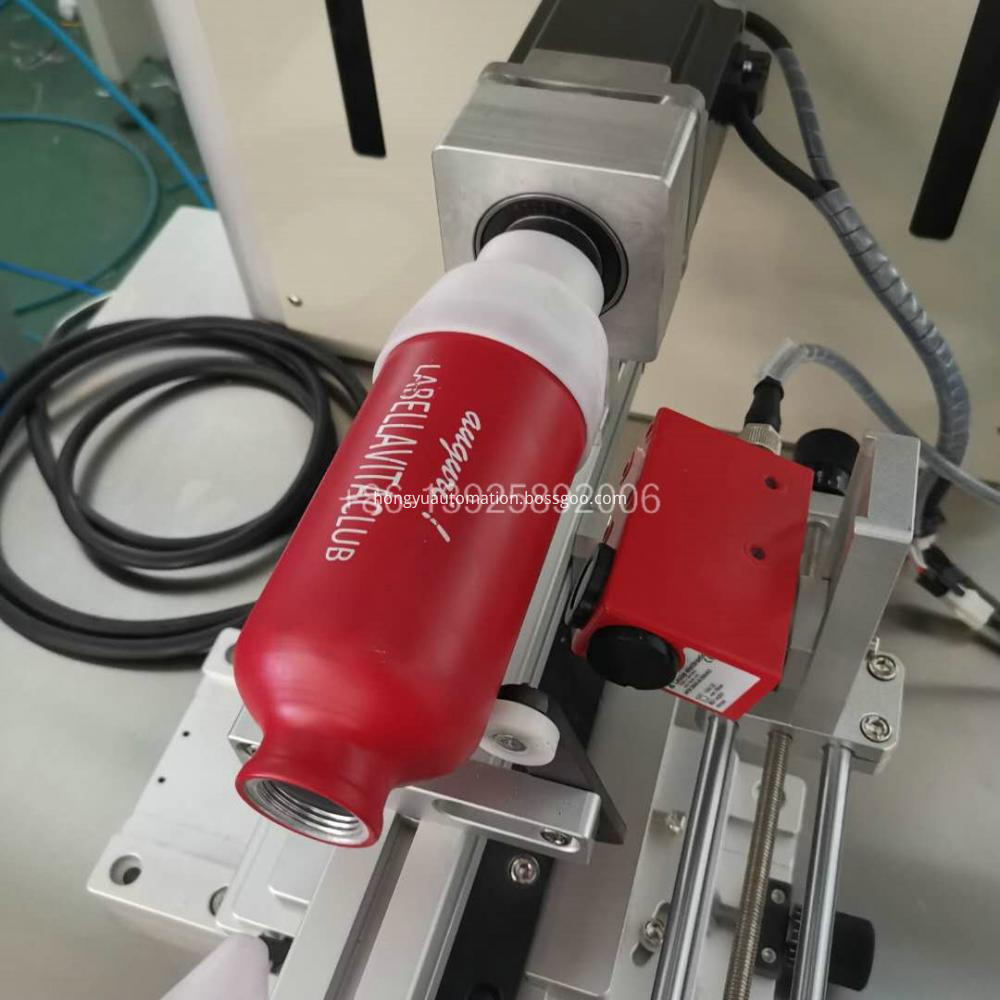

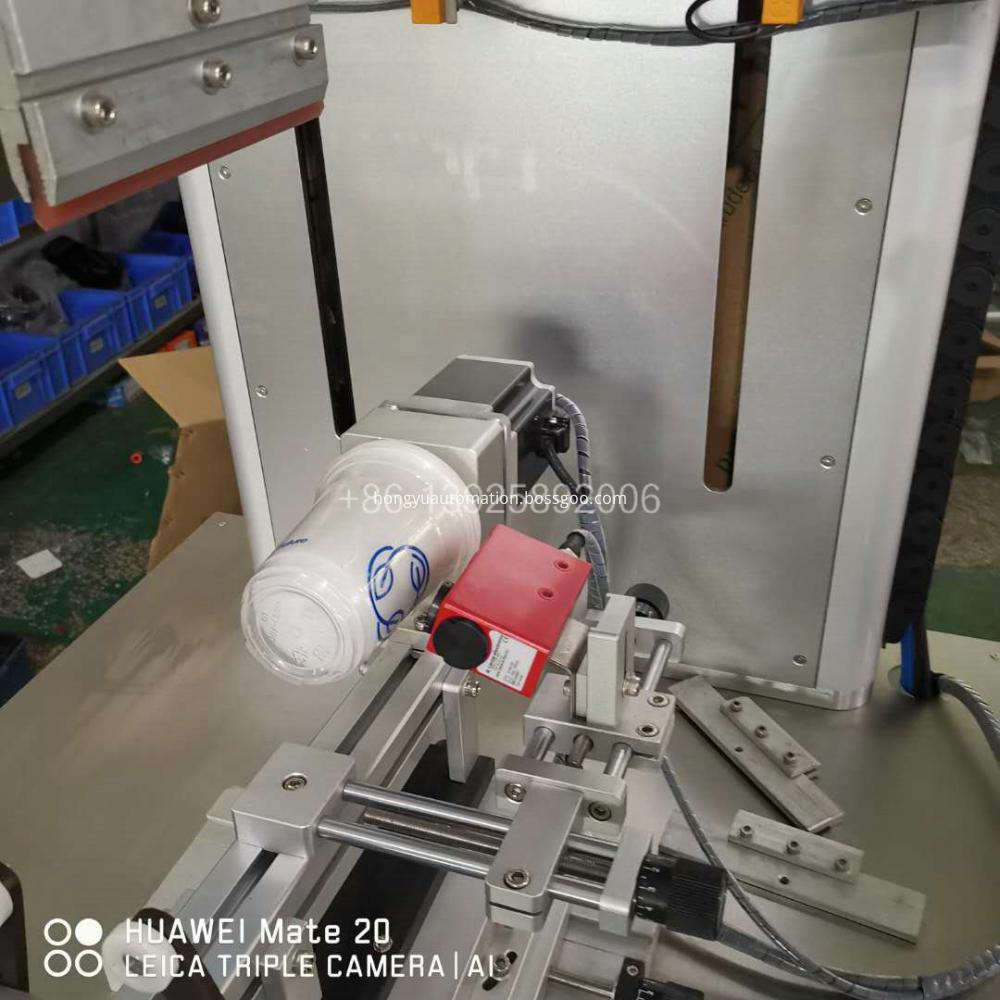

Multi color matching sensor

No gear needed anymore,HY400Sy servo is used servo with high accurate sensor for place locking,we can print more than 10 color using the device,and verr precision and easy;
We do not need to make any gear for color matching, that is more easy for operation;

Motor-driven up/down movment
Linear guideway from TAIWAN HINWIN;
Both use for up/down and left/right; Make sure the movement is steady and low noise; Also for long time using;
servo screen printer
Serco Cylinder Screen Printing Machine 8
Touch screen contorl sysem;
PLC with touch screen control system;We can control almost all kind of movement on the screen,just like use your mobile phone; very easy to use,and with alarm system;

Serco Cylinder Screen Printing Machine 1Serco Cylinder Screen Printing Machine 9Serco Cylinder Screen Printing Machine 3
